14 Bolts Steer Housing with OEM Dana 60 Inner Axle Specifications
Tired of breaking your Dana 60 ring and pinion, but need to reuse your high dollar shafts and knuckles? These are the 14 bolts for you, they can be built with either kingpin or super duty Inner Cs. The housing will be built to reuse factory length dana 60 inner shafts in 30, 35 or 40 spline. This alleviates the need for custom length inners! As such this will require use of a 35 spline carrier for 35 spline applications or 40 spline carrier for 05+ 40 spline shafts. We will build you a custom housing in the factory applications of driver or passenger drop. To be clear this is a Builder Housing with Cs Only!

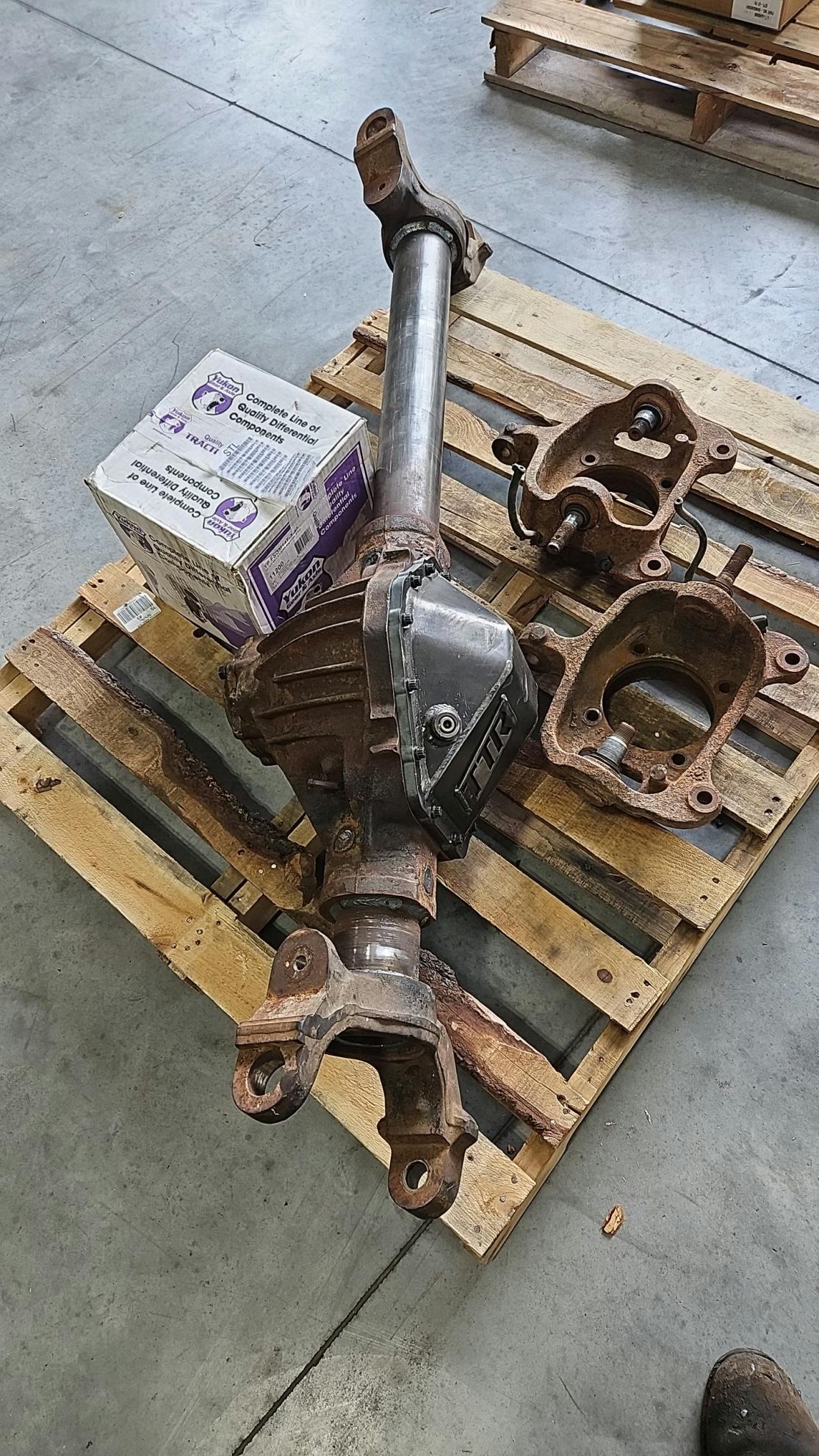

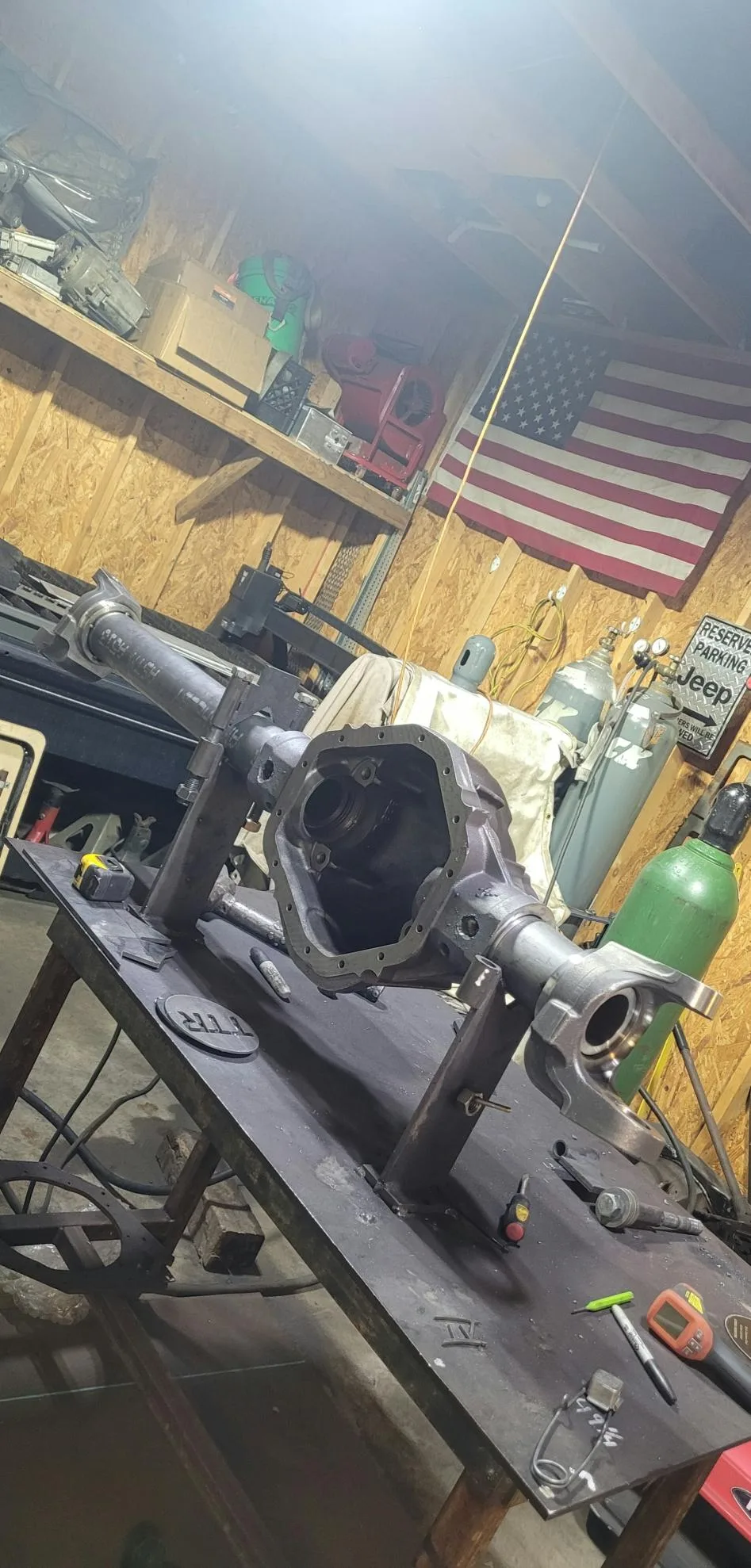

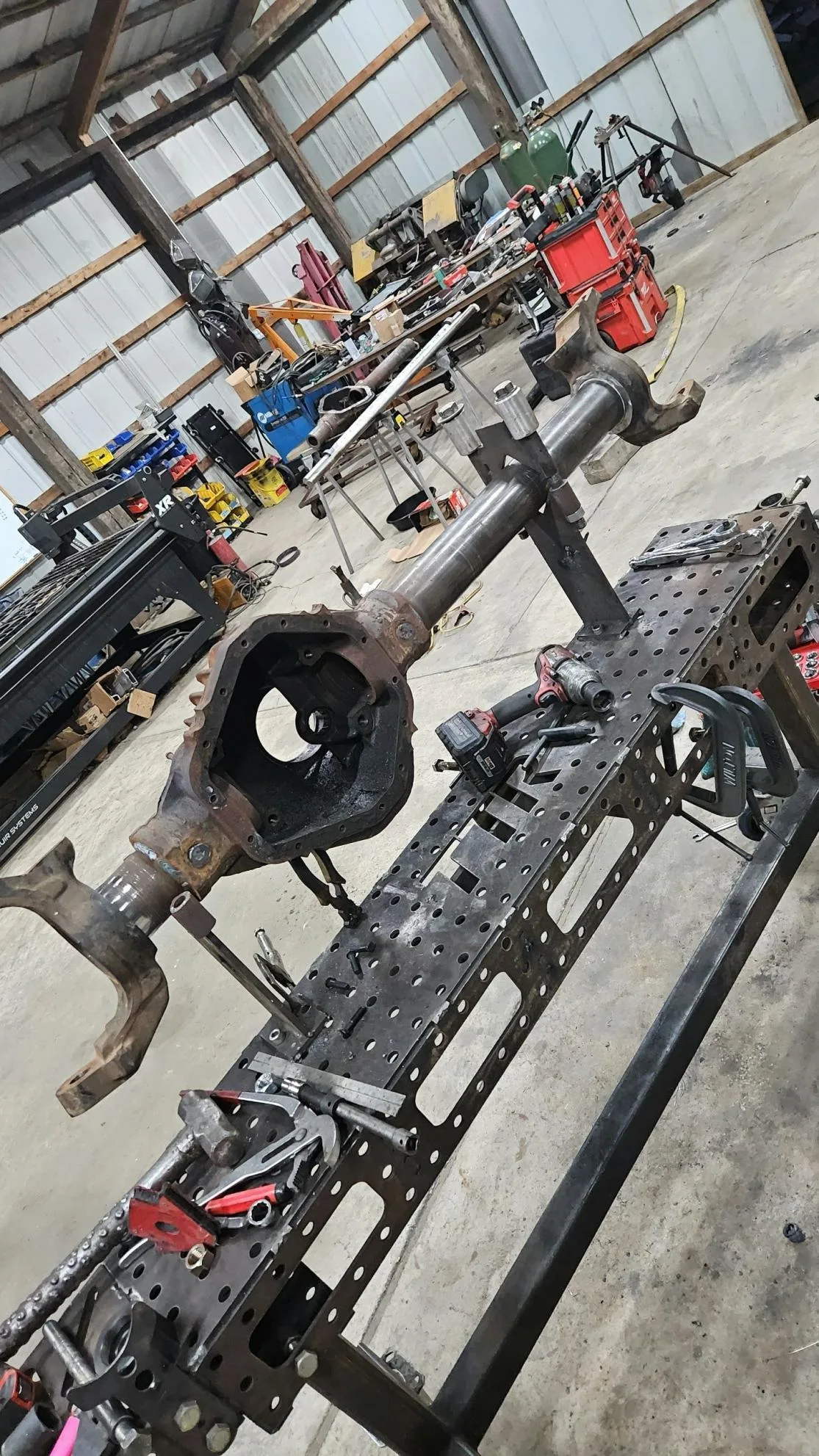

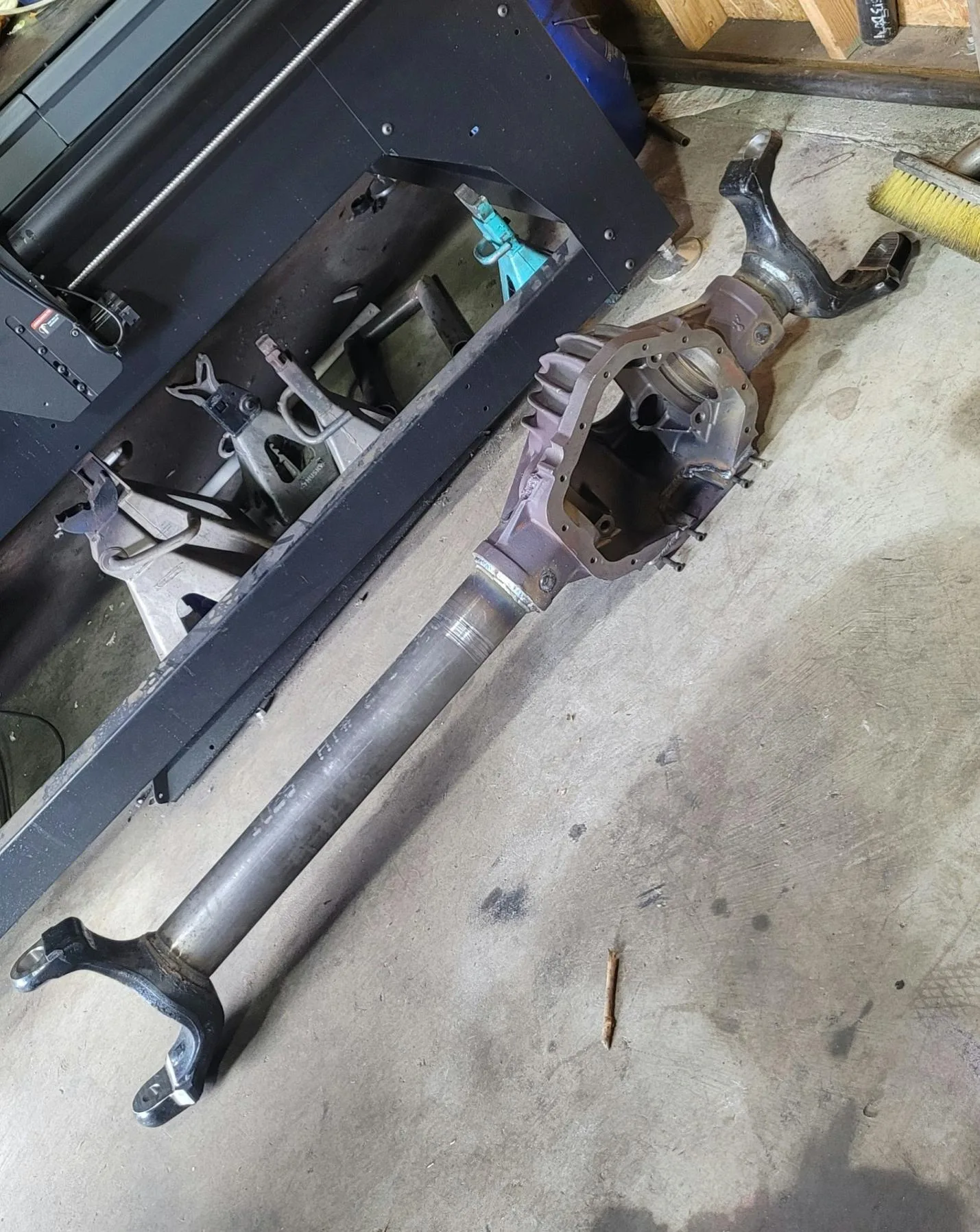

Note: This is a re-tubed housing consisting of 1989-2010 oem cores which feature the ribbed 14 bolt center chunks utilizing new 3.5” x .500 wall DOM tubing. Each assembly will come with pinion support, carrier bearing caps and the new DOM tubing as well as inner C’s of your choice. GLO Diff Cover, Pinion Guards or Yoke Girdles are extra but can be included with purchase. See links below.
$900.00
